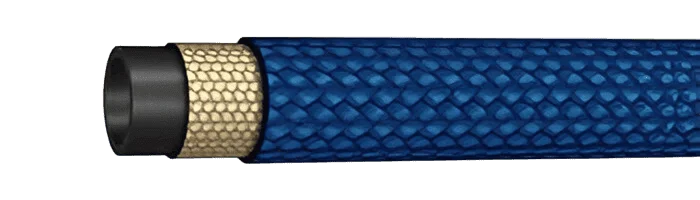

SAE 100 R5C TX / Exceeds SAE J517

A High Pressure Hose Assembly is a robust, reinforced hose with fittings designed to safely convey fluids or gases at very high pressures, typically used in hydraulic systems, industrial cleaning, and other demanding applications.

Reinforcement:
Single steel wire braid.

Application:
Medium pressure hydraulic lines 25 to 210 bar for use with hydraulic handling petroleum based fluids and air, gasoline, fuel and lubricating oils, fire resistant hydraulic fluids & other industrial fluids

Applicable Standard:
Exceeds SAE J517 – 100R5

Inner tube:
Black colour, synthetic rubber resistant to oil.

Cover:
Blue polyester braid cover.

Temperature Range:
Continuous -40°C to +100°C for air application temp should be max +80°C and for water +90°C .

Smooth cover available only upto size 1″
