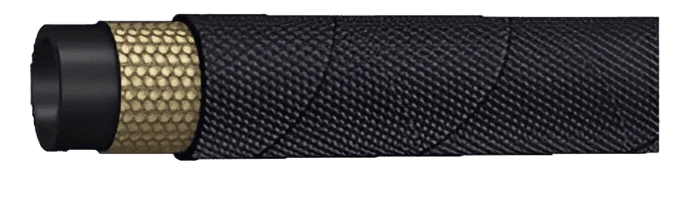

High Pressure Hose Assembly – EN 853 1SN / SAE R1AT

A High Pressure Hose Assembly is a robust, reinforced hose with fittings designed to safely convey fluids or gases at very high pressures, typically used in hydraulic systems, industrial cleaning, and other demanding applications.

Reinforcement:
Single steel wire braid.

Application:
Medium Pressure Hydraulic Lines 10 to 250 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agriculture, Earthmoving & Material handling equipment and machineries / systems.

Impulse Cycles:
150,000; Tested upto 300,000 cycles, upto 1″ I.D.

Applicable Standard:
SAE J517-100R1AT / EN 853-1SN / ISO 1436

Inner tube:
Black colour, Synthetic rubber resistant to oil and water.

Cover:
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish.

Temperature Range:
Continuous -40°C to +100°C

Intermittent:
+120°C

Smooth cover available only upto size 1″
