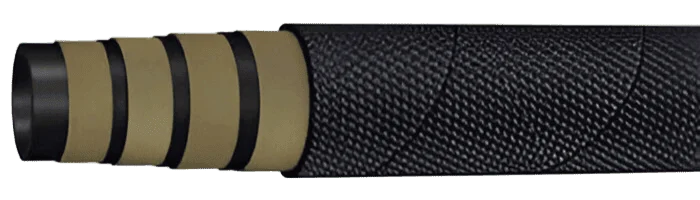

High Pressure Spiral Hose – EN 856 4SH

A High Pressure Spiral Hose is a heavy-duty hydraulic hose designed to withstand extremely high pressures. Built with multiple layers of steel wire reinforcement, it offers superior strength, flexibility, and resistance to pressure surges. These hoses are widely used in construction, mining, agriculture, and industrial applications for safe and reliable fluid transfer under demanding conditions.

Reinforcement:
Four high tensile steel wire spirals.

Application:
Medium pressure Hydraulic Lines 165 to 450 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving & Material handling equipment and machineries / systems.

Impulse Cycles:
400,000 cycles.

Applicable Standard:
EN 856 – 4SH / ISO 3862

Inner tube:
Black colour, Synthetic rubber resistant to oil and water.

Cover:
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone.

Temperature Range:
Continuous: -40°C to +100°C .

Intermittent:
+120°C .
